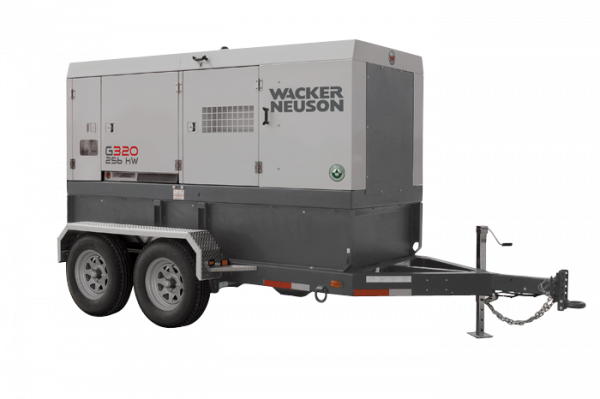

256 kw Generator
Dimensions
Dimensions
| L x W x H Operating (Skid) in | 155 x 60 x 80 | 154 x 60 x 85 |
| L x W x H Shipping (Skid) in | 162 x 68 x 92 | 162 x 68 x 92 |
| L x W x H Shipping/Operating (Trailer) in | 228 x 96 x 105 | 228 x 96 x 105 |
Weights
Weights
| Weight Dry (Skid) lb | 9,450 | 8,750 |
| Weight Operating (Skid) lb | 12,750 | 11,470 |
| Weight Shipping (Skid) lb | 9,817 | 9,250 |
| Weight Operating (Trailer) lb | 14,400 | 13,145 |
| Weight Shipping (Trailer) lb | 11,100 | 10,425 |
Operating Data
| Trailer coupling Type
A16
|
Pintle | Pintle |
| Standby output kW | 269 | 269 |
| Prime output kW | 256 | 256 |
| Voltage 3 Phase V | 240/480 | 240/480 |
| Current 3 Phase (Prime) A | 769/384 | 769/384 |
| Voltage 3 Phase V | 208, 220, 240, 416, 440, 480 | 208, 220, 240, 416, 440, 480 |
| Voltage 1 Phase V | 120, 127, 139, 240, 254, 277 | 120, 127, 139, 240, 254, 277 |
| Circuit breaker (Main) A | 1000 | 1000 |
| Frequency Hz | 60 | 60 |
| Power factor 1 Phase cos Φ 1~ | 1 | 1 |
| Power factor 3 Phase cos Φ 3~ | 0.8 | 0.8 |
| Sound level (LwA) (LwA) at Prime (23 ft / 7 m) dB(A) | 80.3 | 78 |
| Receptacles 20 Amp GFI Duplex | 2 | 2 |
| Receptacles 50 Amp Twist Lock | 3 | 3 |
Engine
Engine
| Engine / Motor | Liquid-cooled, 6 Cylinder | Liquid-cooled, 6 Cylinder |
| Engine / Motor manufacturer | Cummins | Cummins |
| Emissions Certified | Tier 4F | Tier 4i |
| Displacement in³ | 543.1 | 543.1 |
| Operating performance ISO 3046 hp | 433 | 433 |
| at rpm rpm | 1,800 | 1,800 |
| Coolant Capacity US qt | 62 | 42 |
| Engine oil Capacity US qt | 31.7 | 31.7 |
| Fuel type | #1/#2 ULSD | Diesel |
| Fuel consumption (Prime Load) US gal/h | 19.1 | 19.1 |
| Tank capacity Fuel US gal | 404.3 | 377.7 |
| Quantity (Battery) | 4 | 4 |
| Battery V | 24 | 24 |
| Generator model | Mecc Alte, Brushless w/AVR | Mecc Alte, Brushless w/AVR |
| Voltage control No Load to Full Load % | 1 | 1 |
| Voltage control Steady State % | 0.2 | 0.2 |
| Generator insulation (class) | H | H |
| Frequency (Generator Speed) Hz | 60 | 60 |
| Runtime at 100% Prime Load h | 19.9 | 18.6 |
| Runtime at 75% Prime Load h | 25.7 | 24.3 |
| Runtime at 50% Prime Load h | 36.9 | 35.6 |
| Runtime at 25% Prime Load h | 63.4 | 67.1 |
| DEF Type | AUS 32 | |
| DEF Consumption at 100% Prime Load US gal/h | 0.64 | |
| DEF Tank Capacity US gal | 37.4 | |
| Runtime at 100% Prime Load h | 56 |
