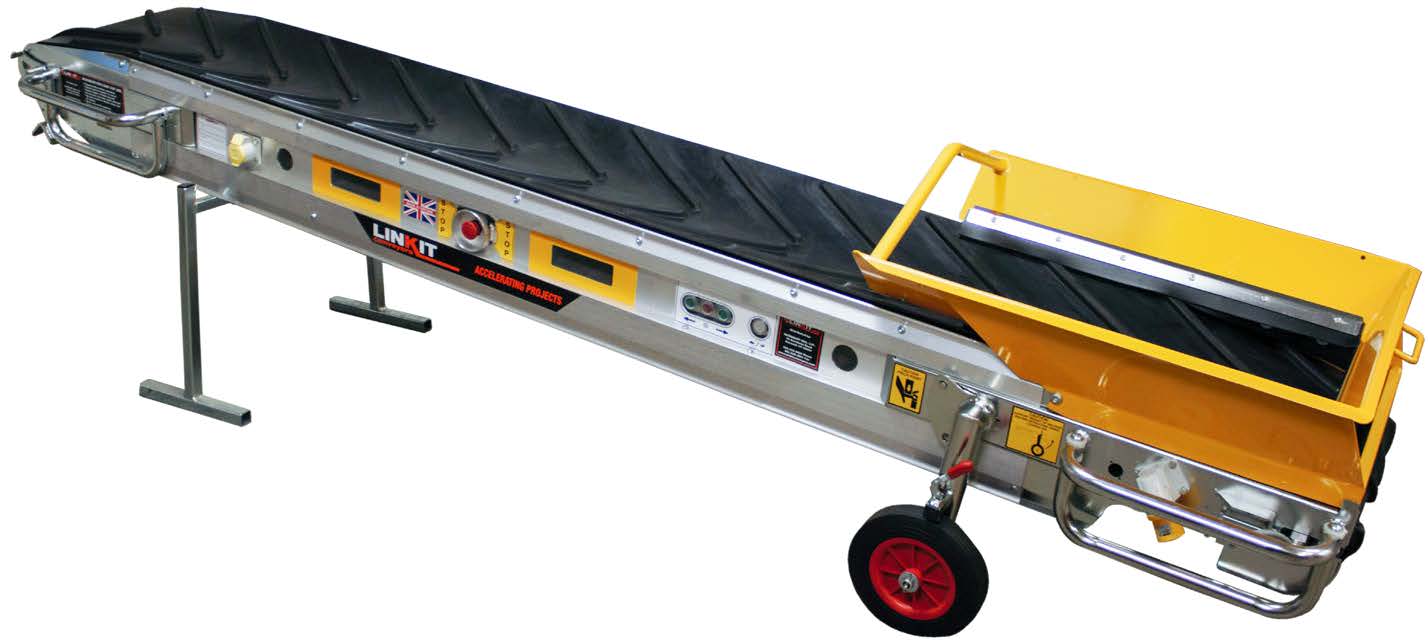

LINKIT 450 Series
Model Specs
Model Specs
| MODEL | LKS450-3.2 | LKS450- 4.4 | LKS450-5.5 | ||
| DIMENSIONS | (10×18) 11” H x 126” L x 30” W |
(14×18) 11” H x 174” L x 30” W |
(18×18) 11” H x 213” L x 30” W |
||
| WEIGHT | 256 lbs. | 353 lbs. | 397 lbs. | ||
| RATED CAPACITY** | Up to and above 60 metric Tph | Up to and above 60 metric Tph | Up to and above 60 metric Tph | ||
| RUBBER BELT | Vulcanized 2-ply poly reinforced w/ chevron | Vulcanized 2-ply poly reinforced w/ chevron | Vulcanized 2-ply poly reinforced w/ chevron | ||
| BELT CAPACITY | 440 lbs. | 440 lbs. | 440 lbs. | ||
| BELT SPEED (Forward / Reverse) |
92 ft/min (fast) 65 ft/min (slow) |
92 ft/min (fast) 65 ft/min (slow) |
92 ft/min (fast) 65 ft/min (slow) |
||
| MAXIMUM ANGLE | 35 degrees | 35 degrees | 35 degrees | ||
| TEMPERATURE RATING | Motor: -13° F Belt: 15° F (min) / 185° F (max) |
Motor: -13° F Belt: 15° F (min) / 185° F (max) |
Motor: -13° F Belt: 15° F (min) / 185° F (max) |
||
| DRUM MOTOR | Rulmeca 0.75kW (1HP) | Rulmeca 0.75kW (1HP) | Rulmeca 0.75kW (1HP) | ||
| INVERTER | IMO Jaguar CUB5A-6J 110v 1-phase input / 220v 3-phase output |
IMO Jaguar CUB5A-6J 110v 1-phase input 220v 3-phase output |
IMO Jaguar CUB5A-6J 110v 1-phase input 220v 3-phase output |
||
| AMP DRAW | 1.4 run / 5.0 peak | 1.4 run / 5.0 peak | 1.4 run / 5.0 peak | ||
| NOISE EMISSIONS | >75 dB | >75 dB | >75 dB | ||
Features
Features
•Hopper (32” L x 26” W)
•Folding Wheels*
•Linking Brackets
•Emergency Stops
•Trestle (20” H)
•Power Cord (3’)
