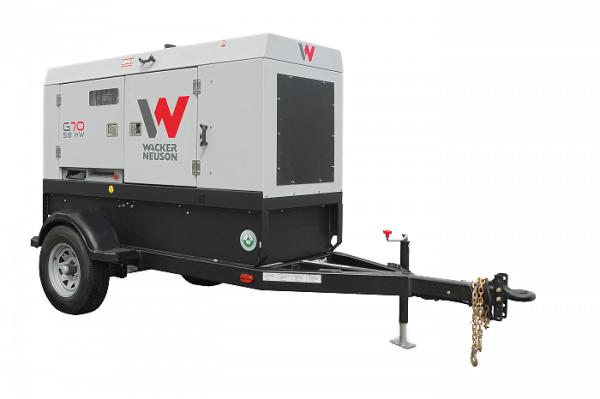

58 kw Generator
Dimensions
Dimensions
| L x W x H Operating (Skid) | 96.5 x 38.0 x 63.2 in |
| L x W x H Shipping (Skid) | 100 x 40.5 x 70.2 in |
| L x W x H Shipping (Trailer) | 160 X x 67.5 x 85 in |
Weights
Weights
| Weight Dry (Skid) | 3,750 lb |
| Weight Operating (Skid) | 4,510 lb |
| Weight Shipping (Skid) | 3,906 lb |
| Weight Operating (Trailer) | 5,390 lb |
| Weight Shipping (Trailer) | 4,630 lb |
Operating Data
| Trailer coupling Type | Pintle |
| Standby output | 63 kW |
| Standby output | 79 kVA |
| Prime output | 58 kW |
| Voltage – AC 3 Phase | 240/480 V |
| Current – 3 Phase (Prime) | 174 / 87 A |
| Current – AC 1 Phase | 120 / 240 A |
| Voltage – 3 Phase | 208, 220, 240, 416, 440, 480 V |
| Voltage – 1 Phase | 120, 127, 139, 240, 254, 277 V |
| Circuit breaker (Main) | 250 A |
| Frequency | 60 Hz |
| Power factor 3 Phase | 0.8 cos Φ 3~ |
| Sound level (LwA) at Prime (23 ft / 7 m) | 68 dB(A) |
| Battery (1000 CCA) | 12 V |
| Receptacles -20 Amp GFI Duplex | 2 |
| Receptacles -50 Amp Twist Lock | 3 |
| Receptacles -30 Amp Twist Lock |
Engine
Engine
| Engine / Motor | Liquid-Cooled, 4 Cylinders |
| Engine / Motor manufacturer | Kohler KDI3404 |
| Emissions Certified | Tier 4 Final |
| Displacement | 205 in³ |
| Operating performance SAE J1940 ./ J1995 | 104 hp |
| at rpm | 1,800 rpm |
| Coolant Capacity | 21.5 US qt |
| Engine oil Capacity | 15.8 US qt |
| Fuel type Diesel | #1/#2 ULSD |
| Fuel consumption (Prime Load) | 4.2 US gal/h |
| Tank capacity -Fuel | 112 US gal |
| Quantity (Battery) | 1 |
| Generator model | Mecc Alte, Brushless w/AVR |
| Voltage control No Load to Full Load +/- | 1% |
| Voltage control Steady State +/- | 0.20% |
| Generator insulation (class) | H |
| Frequency (Generator Speed) | 60 Hz |
| Runtime at 100% Prime Load | 25.2 h |
| Runtime at 75% Prime Load | 32 h |
| Runtime at 50% Prime Load | 47.1 h |
| Runtime at 25% Prime Load | 74.7 h |
| DEF Type | AUS 32 |
| DEF Consumption | 0.07 US gal/h |
| DEF Tank Capacity | 5.1 US ga |
